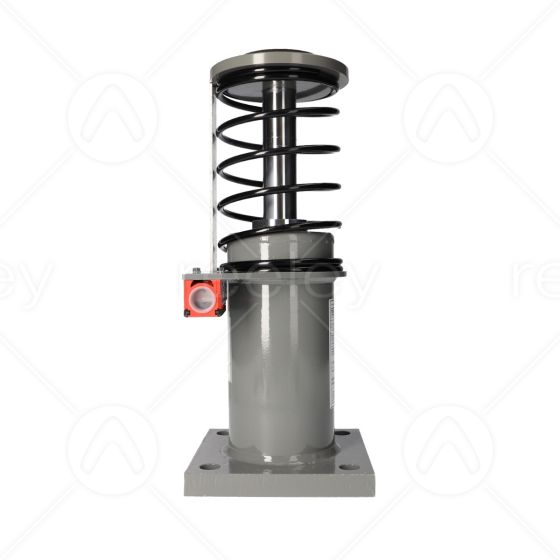

Hydraulic Buffer H12

HB4120

£350.00

HB4120 Datasheet (Size: 659.3 KB)

40mm OD x 120mm Piston Length x 385mm High

More Information
Part Number	HB4120
Comments	Hydraulic System with Switch for Lifts up to 1.3 m/s Nominal Speed, According to EN 81 - 20/50 : 2014, EN 81 - 1/2 1998+A3; 2009 With Operation Bar Conformal to AR 2014/33/EU (valid from 20.04.2016) Load Range 450kg - 3500kg H11 (305mm High) Available Part No. HB4080 H13 (495mm High) Available Part No. HB4175 H14 (715mm High) Available Part No. HB4275 H15 (1122mm High) Available Part No. HB4430

HB4120 Datasheet (Size: 659.3 KB)
